Elevated Runway Edge Light

product-706-938

China Airport Runway Edge Light,

China Runway threshold end light,

China Airport Runway Threshold Light,

China Airport Runway Threshold Wing-bar.

Compliance with Standards

CAAC:AC-137-CA-2015-01&03

SAC: GB/T 7256

ICAO: Annex 14, Volume I

IEC: TS 61827

FAA: AC 150/5345-46 & EB NO.67

NATO: STANAG 3316

Application/Use

Airport Elevated Runway Edge Light LED/halogen type

product-409-610

Features

•LED Airport Runway edge light is featured by long life, effective energy saving, maintenance-free, which brings enormous economic benefits to customer

• Consistent dimming curve with halogen lamp fixture, complying with FAA standards

• Strict LED color management to ensure premium color consistency

• Proprietary driving circuit and thermal management solution, which greatly improves the reliability and service life of light fixture

• Power factor above 0.9, which minimizes the power network interference

• Optional function of single lamp failure detection, which enables the light to be open as halogen lamp once LED fails

• Compact structure and attractive appearance, with small windward area and strong wind resistance capability

•The main body is made of aluminum alloy with anti- corrosion surface treatment, all fasteners are made of stainless steel, suitable for various harsh environment applications

•High-precision parts and components machining to ensure all dimensional quality and accuracy

•Forged frangible device with precise machining, complying with FAA standards, ensuring good stability and reliability

•IP65-grade ingress protection of the fixture, keep interior from dust

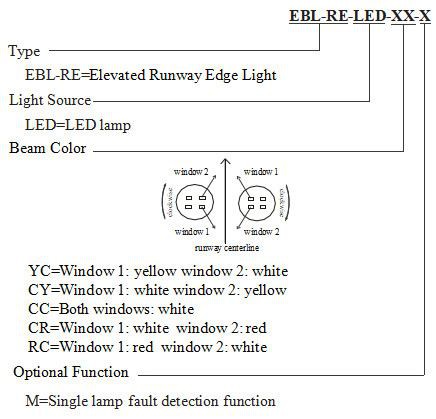

Ordering Information

QQ20211104103234

Please provide detailed installation info while ordering, spare parts and accessories should be separately ordered with specific order no.

Installation

Fig 1. On 12" deep base
Fig 2. Flange direct mount
Fig 3. Embeded pipe mount

* Please find detailed information in installation manual

Structure

1. front cover

2. optical cover gasket

3. optical cover

4. LED lamp assy

5. light body

6. light body gasket

7. transformer

8. driver assy

9. light body holder

10. waterproof gland

11. frangible pole

12. plug

Specifications

Light source: 12 Clear/Red/Yellow LED particles per side

Power: 36 VA

Power factor:0.9

IP grade：IP65

Photometric Data

EBL-RE-LED, ICAO Figure A2-9, FAA L-862

Application		Main Beam		Color	Required min avg. cd	Actual avg. cd
		H	V
EBL-RE- LED	ICAO Figure A2-9/ FAA L-862	士5.5° (Toe-in 3.5°)	0°-7°	White	10000	11982
				Yellow	4000/ 5000	9273
				Red	1500/ 2000	2523
	ICAO Figure A2-10	士6.5° (Toe-in 4.5°)	0°-7°	White	10000	10392
				Yellow	4000	8928
				Red	1500	2411

Packing Data

4 lights

Size: 220x220x265 mm³

Unit net weight: 4.2 kg

Gross weight: 17.9 kg

Spare Parts

Struc No.	Part Name	Order No.	Description
1	front cover	24135	optical cover bracket ring
2	optical cover gasket	41149	front glass seal gasket LED
3	optical cover	3110A	for LED runway edge light - front glass
4	LED lamp assy	79243-C	LED light source 85x63.5 white
		79243-R	LED light source 85x63.5 red
		79243-Y	LED light source 85x63.5 yellow
5	light body	241K1	for bidirectional LED lights
6	light body gasket	41161	"O" ring seal 106x3
7	transformer	BR45 -11346	r-core transformer 45W
8	driver assy	979143	PCB-Approach light- 12X(Assy)
9	light body holder	241J1	light body holder
10	waterproof gland	48404	waterproof gland MG18x1.5
11	frangible pole	24211	frangible pole
12	plug	HT 70603	secondary cable connector - Style 6 HT

Accessories

Description	Order No.
flange 240mm	276A1
flange 304mm (FAA standard)	27683
hex wrench for frangible pole of elveated lights	54101
calibrator assy	954211
secondary cable receptacle - style 7	70703
45-watt isolation transformer	ITF-045-066
isolation transformer housing	TJB-12
