Airport Isolation Transformer
Airport Isolation Transformer,
airport use isolation transformer,
China Airport Isolation Transformer,
Airport Isolation Transformer price.
Compliance
Compliance with Standards
CAAC: MH/T 6008
ICAO: DOC 9157,Part 5,Para.3.2
IEC: TS 61823
FAA: AC 150/5345-47
Application/Use
Airport isolation transformer is widely used in Airport runway, taxiway or apron 2.8-6.6A constant current input circuit
Features
All series of specifications,structure, electrical and other properties of airport isolation transformers meet the requirements of FAA, ICAO and IEC;
Use international standard plugs and sockets to meet the connecting requirements of FAA standard lamps;
Made of special rubber and plastic materials, super anti-aging performance, corrosion resistance, kerosene resistance, urea resistance, to ensure long-term stability of high insulation and reliability;
Use integral injection process to ensure the joint parts of the connector are firmly connected with the body;
The internal frame is designed to ensure that the primary coil and the secondary coil are fully isolated;
The use of high quality silicon steel sheet greatly guarantees the electrical performance of the product.
15KV high voltage resistance, hot insulation resistance greater than 7500 MEG, leakage current less than 2 A;
The earthing resistance is less than 4 Ω. The grounding is reliable and
high degree of safety;
The working temperature is -55 ℃ to +65 ℃, stable work performance;
With earthing or non grounding type can be selected by users;
Special socket / plug protector to ensure plug and socket are free from moisture and dust.
Structure
1.Ground NutM5(Earthing Type)
2.Isolation transformer body
3. Primary plug / socket cable
4. Style 2 Primary plug
5. Style 9 Primary socket
6. Secondary socket cable
7. Style 8 Secondary socket
Ordering

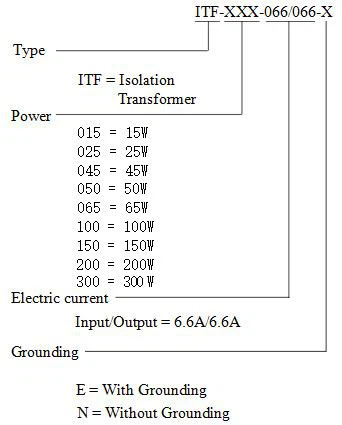

Ordering Information
Installation
Detailed installation information refer to the product instructions
Wiring diagram
CCR：Constant Current Regulator
L：Light Fixtures
ST：Series connection isolation transforme
Accessories
Please refer to the below form for plugs and packages matching the isolation transformer.
|
Type |
Order No. |
Remarks |
|
Secondary Calbe Plug (A4) |
971733 |
Style 4 Combined Kit, |
|
Primary cable plug& plug kit (A3 A10) |
971730 |
Style 3 Sytle 10 Combined Kit, Recommend to use * |
|
Secondary Calbe Plug (A6) |
70603 |
Style 6 |
|
Secondary Calbe Plug (A2) |
70206 |
Style 2 |
|
Secondary Calbe Plug (A9) |
70906 |
Style 9 |
|

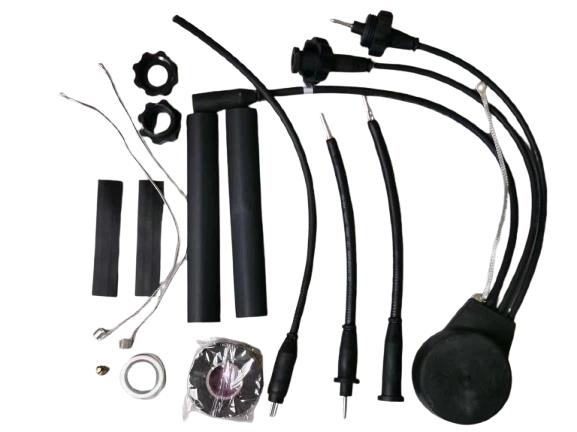

ITF thermoplastics accessories kit
|
970001
|
Contain connector style 2 style 9 |
Technical Data
|
FAA Specified number |
Type (W) |
Main Circuit current |
Power factor |
Power |
Pressure resist- |
Full load current of secondary circuit (A) |
Open circuit voltage of secondary circuit (V) |
|
L-830/8 31- 16 |
10/15 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<8 |
|
L-830/8 31- 17 |
20/15 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<8 |
|
L-830/8 31- 1 |
30/15 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<25 |
|
N/A |
50 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<25 |
|
L-830/8 31- 3 |
65 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<30 |
|
L-830/8 31- 4 |
100 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<70 |
|
L-830/8 31- 18 |
150 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<70 |
|
L-830/8 31- 6 |
200 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<100 |
|
L-830/8 31- 10 |
300 |
6.6 A |
≥0. 9 5 |
≥70 |
5000 |
6.53 - 6.67 |
<135 |
Packing Data
 |
 |
|
Type |
B(mm) |
L(mm) |
H(mm) |
|
15W |
110 |
101.2 |
76 |
|
25W |
110 |
101.2 |
85 |
|
45W |
126.5 |
121 |
90. 7 |
|
50W |
126.5 |
121 |
90. 7 |
|
65W |
126.5 |
121 |
102.7 |
|
100W |
134 |
130 |
100.7 |
|
150W |
141.5 |
139 |
110.7 |
|
200W |
157.5 |
158.2 |
111 |
|
300W |
157.5 |
158.2 |
131 |
